產品特性 Product Feature
Chip Protocol:(芯片協議:) |
EPC Class1 Gen2,ISO 18000-6C |
Working Frequency:(工作頻率:) |
US:902-928MHz |
IC Type:(IC 類型:) |
UCODE8 (或者可做H3) |
Memory:(內存:) |
EPC 96-128bi,User 32bit |
Functionality:(功能:) |
Read / write(讀/寫) |
Fixed reader read range (30dBm/8dBi):(固定讀寫器讀距:) |
1000cm-US, No Metal Surfaces(非金屬表面) |
Fixed reader read range (30dBm/8dBi):(固定讀寫器讀距:) |
350cm-US,Metal Surfaces(金屬表面) |
Physicial Specification(產品規格:) |
|

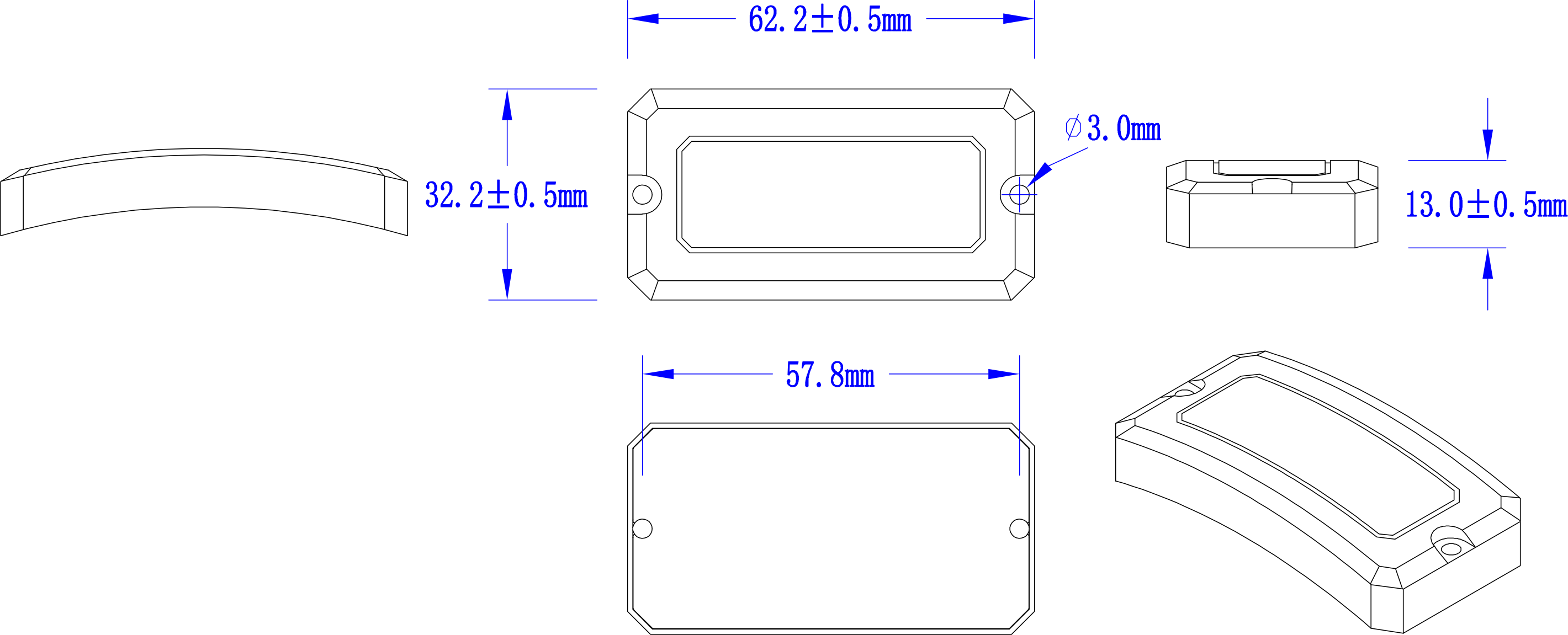

Dimension:(尺寸:) |
62.4mm*32.2mm*13mm |
Material:(材料:) |
ABS 黑色 |
Mounting Methods:(安裝工藝:) |
Adhesive or Screw fixed(膠粘或螺絲固定) |
Weight/piece:(每個的重量:) |
10g |
Environmental Parameter:(環境參數:) |
|
IP Rating:(防水等級:) |
IP65 |
Storage Temperature:(存儲溫度:) |
-20degree to +100 degree |
Operation Temperature:(工作溫度:) |
-20degree to +85 degree |
